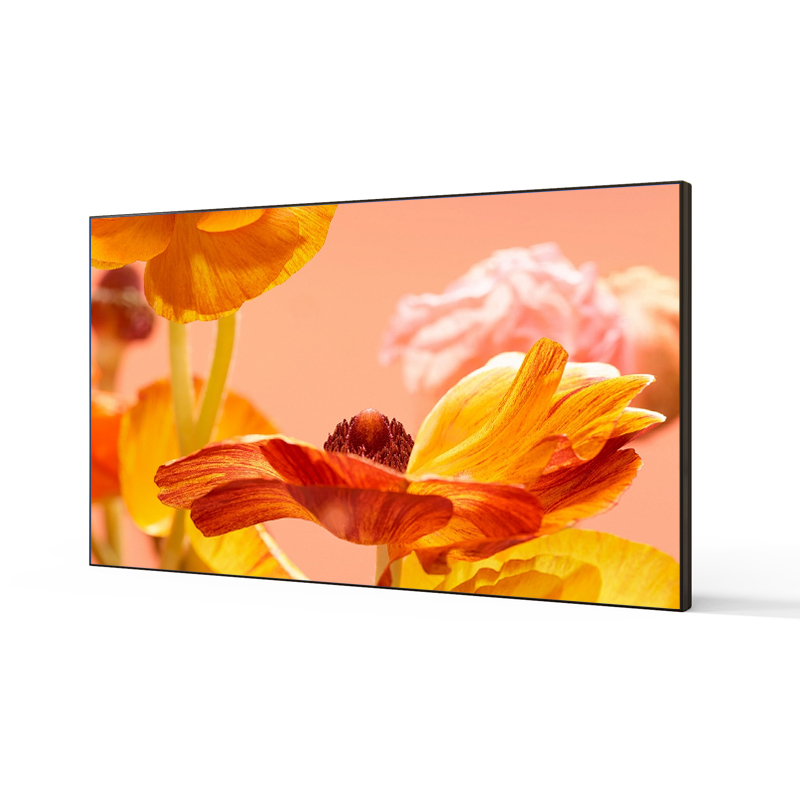

55 inch BOE 3.5mm LCD splicing screen

55 inch BOE 3.5mm LCD splicing screen
55 inch BOE 3.5mm LCD splicing screen
  • 55 inch BOE 3.5mm LCD splicing screen
  • 55 inch BOE 3.5mm LCD splicing screen

55 inch BOE 3.5mm LCD splicing screen Display parameters


Product number
HBY-PJ550P
screen size
1209.6mm*680.4mm
Bilateral patchwork
3.5mm
brightness 500 cd/m2 physical dimension 1213.5*684.2*122.0mm Power consumption 280W/h
Contrast 4500:1 Boot response time 6ms Resolution 1920*1080
Viewing angle 178° weight 36KG Service life 6W hours






Ultra narrow frame design, perfect visual feast

The 3.5mm splicing narrow frame design makes the display between the screens almost seamless. The width of the left / top border of the splicing display screen is 2.5mm, the width of the right / bottom border is 1.3mm, and the frame spacing is only 3.5mm when splicing multiple screens35mm.jpg


LCD splicing unit, multi view angle analysis



Intelligent split screen, single screen, multi screen arbitrary combination

Diversified image mosaic display, the size and position of the display signal window can be set, and the functions such as combination display, stretching and image roaming can be realized easily3(1).jpg


Application environment

It can be used in various environments




Various installation methods

The installation mode can be adjusted according to the different wall structure and the size of the project area. Engineers all over the country to install, so that you can avoid worries


LCD splicing screen parameter table

LCD screen Size 55 inches
Display area 1209.6mm*680.4mm
Equipment size 1213.3mm*684.2mm*122.0mm
Resolving power 1920*1080
Pixel spacing 1.75mm*1.75mm
Brightness 500cd/m2
Contrast ratio 4500:1
Color 16.7M
Gamut 0.72
Viewing angle 178°
Response time 6ms
Physical seam 3.5mm
Image Proportion 16:9
Wave filter 3D comb filter, digital noise reduction
Video format PAL/NTSC
Input port HDMI 1-way HDMI 1.41920* 1080@60HZ Downward compatibility
DVI 1-way DVI-I, 1920* 1080@60HZ Downward compatibility
VGA 1-way VGA (DB-15), 1920* 1080@60HZ Downward compatibility
AV 2-way AV, 1920* 1080@60HZ Downward compatibility
USB 1 channel, supporting video, picture and audio playback
RS232 1-way RS232
Ring out port AV 2-way AV, 1920* 1080@60HZ Downward compatibility
RS232 2-way RS232
Electrical performance Input AC100-240V wide voltage input
Power waste 280W
Standby power 0.5W
Environmental Science Storage temperature -20~ 65°C
Working temperature 0~ 50°C
Weight Net weight 36KG
