hbying products have passed the strict certification and adopt the industry-leading advanced technology to ensure the best quality.

46 inch Samsung 1.7mm LCD splicing screen

46 inch Samsung 1.7mm LCD splicing screen
46 inch Samsung 1.7mm LCD splicing screen
46 inch Samsung 1.7mm LCD splicing screen
  • 46 inch Samsung 1.7mm LCD splicing screen
  • 46 inch Samsung 1.7mm LCD splicing screen
  • 46 inch Samsung 1.7mm LCD splicing screen

46 inch Samsung 1.7mm LCD splicing screen Display parameters


Product number
HBY-PJ460P-2
screen size
1018.1mm*572.7mm
Bilateral patchwork
1.7mm
brightness 500 cd/m2 physical dimension
1020.02*574.61*125.7mm Power consumption 220W/h
Contrast 4000:1 Boot response time 6ms Resolution 1920*1080
Viewing  angle 178° weight 26KG Service life 6Whour

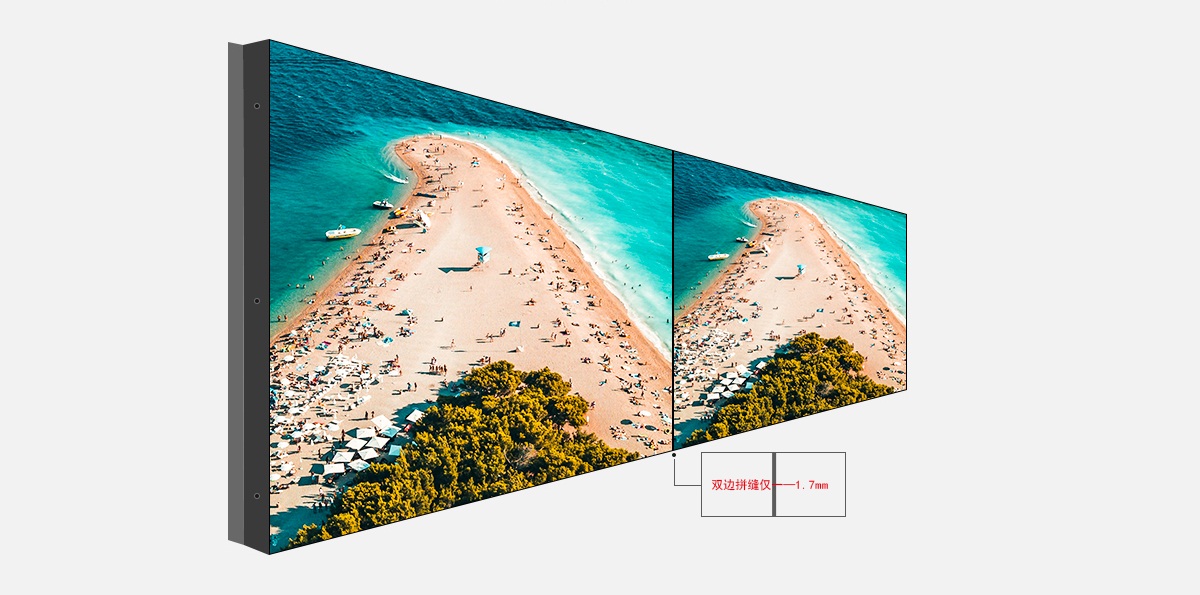

Ultra-narrow frame design, perfect visual feast

The 1.7mm splicing narrow frame design makes the display between the screens almost seamless. The width of the frame on the left/upper side of the spliced display is 1.15mm.

The width of the right/bottom border is 0.55mm, and the border interval is only 1.7mm when multi-screen splicing

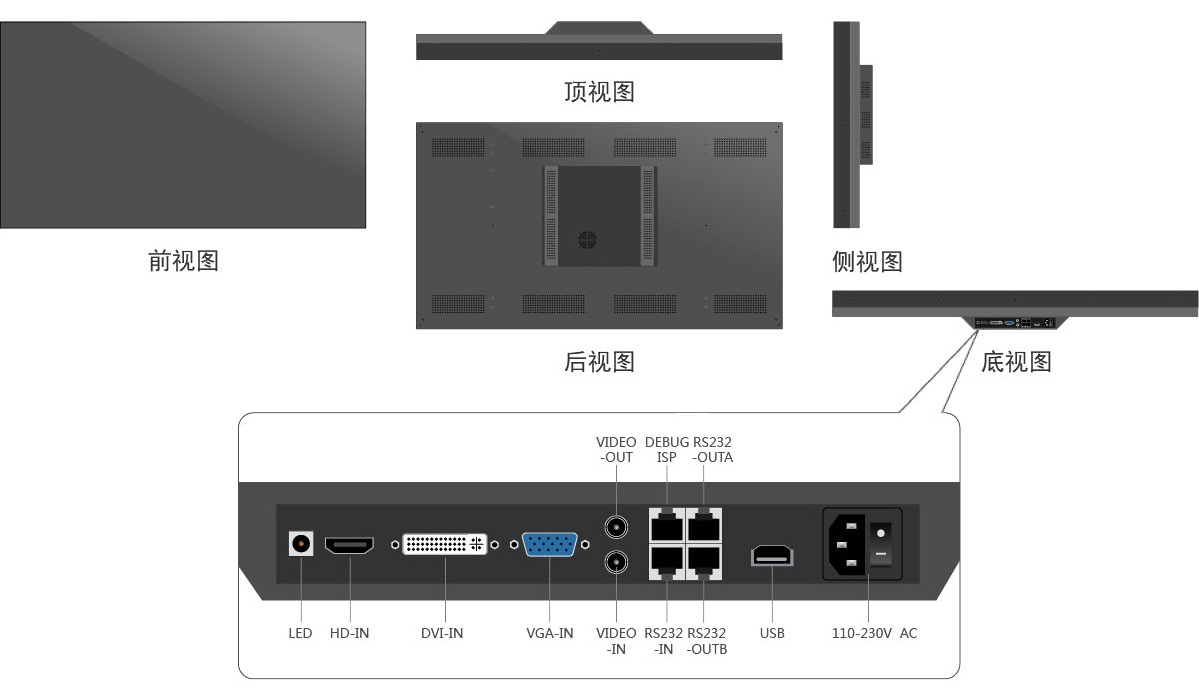

LCD splicing unit, multi-view angle analysis

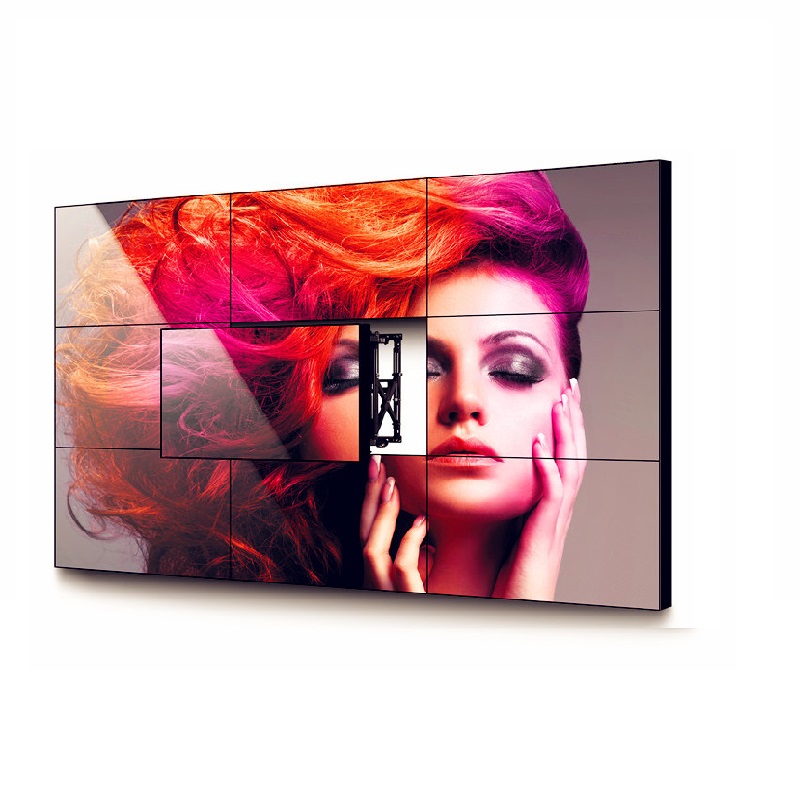

Intelligent split screen, any combination of single screen and multiple screens

Diversified image splicing display, can set the size and position of the display signal window, and easily realize the functions of combined display, stretching, image roaming, etc.3(1).jpg


Application Environment

Can be used in various environments





LCD splicing screen parameter table

LCD screen size 46 inches
Display area 1018.1mm*572.7mm
Equipment size 1020.02mm*574.61mm*125.7mm
Resolution 1920*1080
Pixel pitch 0.53025mm*0.53025mm
brightness 500cd/m2
Contrast 4000:1
color 16.7M
Color gamut 0.72
Viewing angle 178°
Response time 6ms
Physical patchwork 1.7MM
image proportion 16:9
Wave filter 3D comb filtering, digital noise reduction
Video format PAL/NTSC
Input port HDMI 1 channel HDMI 1.4, 1920*1080@60HZ backward compatible
DVI 1 DVI-I, 1920*1080@60HZ backward compatible
VGA 1 channel VGA(DB-15), 1920*1080@60HZ backward compatible
AV 2 channels AV, 1920*1080@60HZ backward compatible
USB 1 channel, support video, picture, audio playback
RS232 1 RS232
Loop out port AV 2 channels AV, 1920*1080@60HZ backward compatible
RS232 2 RS232
Electrical performance enter AC100-240VWide voltage input
Power consumption 180W
Standby power consumption 0.5W
surroundings storage temperature -20~ 65°C
Operating temperature 0~ 50°C
surroundings net weight 26KG
