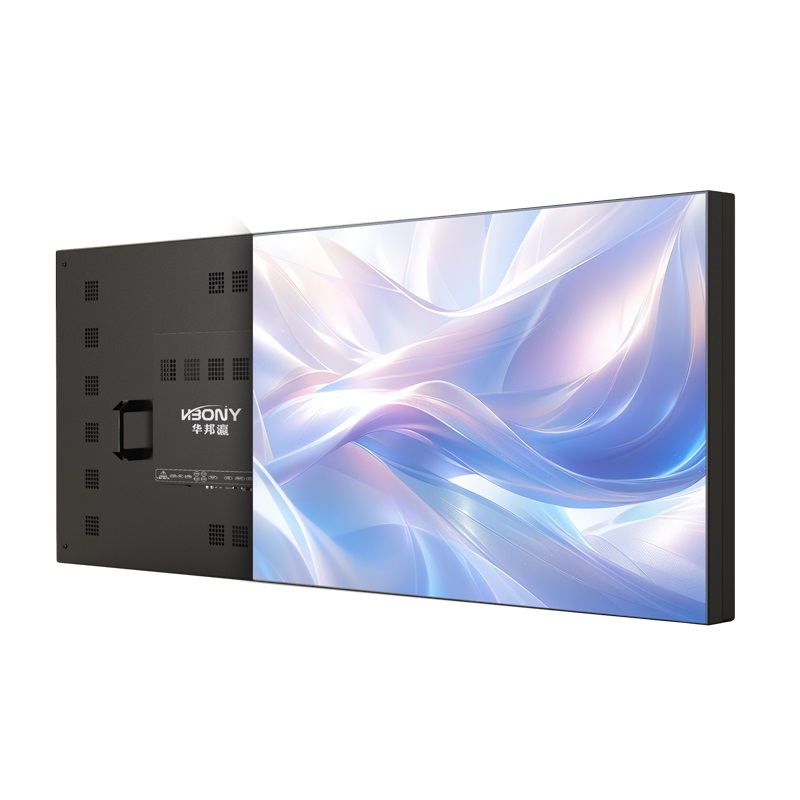

46 inch Samsung 3.5mm LCD splicing screen

46 inch Samsung 3.5mm LCD splicing screen
46 inch Samsung 3.5mm LCD splicing screen
  • 46 inch Samsung 3.5mm LCD splicing screen
  • 46 inch Samsung 3.5mm LCD splicing screen

46 inch Samsung 3.5mm LCD splicing screen Display parameters


Product number
HBY-PJ460P
screen size
1018.08mm*572.67mm
Bilateral patchwork
3.5mm
brightness 700 cd/m2 Dimensions 1021.98*576.57*125.7mm Power consumption 180W/h
Contrast 3500:1 Boot response time 6ms Resolution 1920*1080
Viewing angle 178° weight 26KG Service life 6W hours






Ultra-narrow frame design, perfect visual feast

The 3.5mm splicing narrow frame design makes the display between the screens almost seamless. The width of the frame on the left/upper side of the spliced display is 2.5mm

The width of the right/lower border is 1.3mm, and the border interval is only 3.5mm when multi-screen splicing





LCD splicing unit, multi-view angle analysis



Intelligent split screen, any combination of single screen and multiple screens

Diversified image splicing display, can set the size and position of the display signal window, and easily realize the functions of combined display, stretching, image roaming, etc.




Application Environment

Can be used in various environments







LCD splicing screen parameter table

LCD screen size 46 inches
Display area 1018.08mm*572.67mm
Equipment size 1021.98mm*576.57mm*125.7mm
Resolution 1920*1080
Pixel pitch 1.75mm*1.75mm
brightness 700cd/m2
Contrast 3500:1
color 16.7M
Color gamut 0.72
Viewing angle 178°
Response time 6ms
Physical patchwork 3.5mm
image proportion 16:9
Wave filter 3D comb filtering, digital noise reduction
Video format PAL/NTSC
Input port HDMI 1 channel HDMI 1.4, 1920*1080@60HZ backward compatible
DVI 1 DVI-I, 1920*1080@60HZ backward compatible
VGA 1 channel VGA(DB-15), 1920*1080@60HZ backward compatible
AV 2 channels AV, 1920*1080@60HZ backward compatible
USB 1 channel, support video, picture, audio playback
RS232 1路RS232
Loop out port AV 2 channels AV, 1920*1080@60HZ backward compatible
RS232 2路RS232
Electrical performance enter AC100-240V wide voltage input
Power consumption 180W
Standby power consumption 0.5W
surroundings storage temperature -20~ 65°C
Operating temperature 0~ 50°C
weight net weight 26KG
