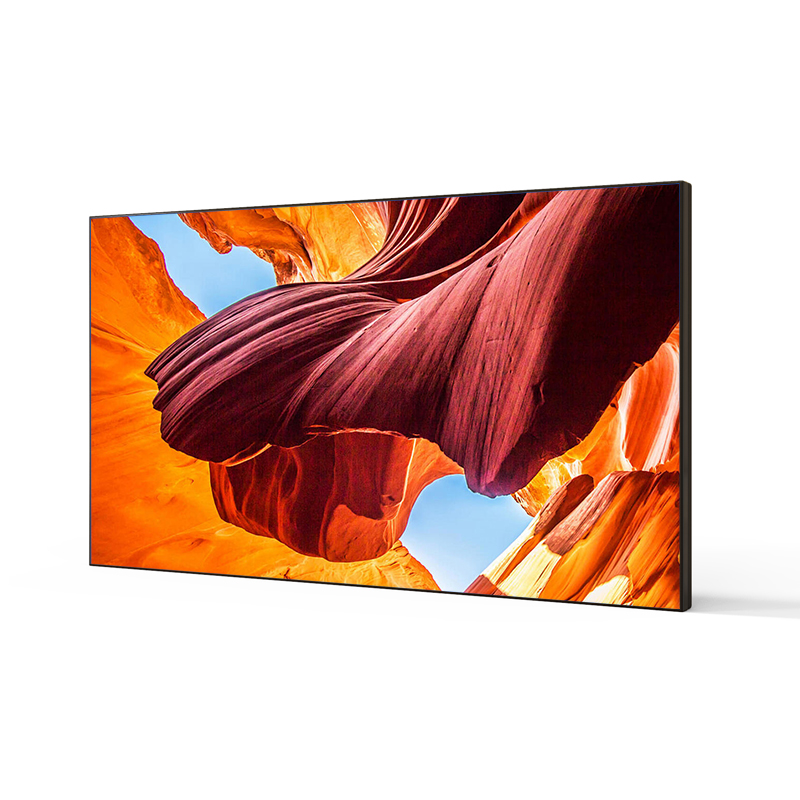

55 inch lg1.8mm LCD splicing screen

55 inch lg1.8mm LCD splicing screen
55 inch lg1.8mm LCD splicing screen
  • 55 inch lg1.8mm LCD splicing screen
  • 55 inch lg1.8mm LCD splicing screen

55 inch lg1.8mm LCD splicing screen Display parameters


Product number
HBY-PJ550P-3
screen size
1209.6mm*680.4mm
Bilateral patchwork
1.8mm
brightness 500 cd/m2 Dimensions 1211.4*682.2*161.6mm Power consumption 280W/h
Contrast 4000:1 Boot response time 6ms Resolution 1920*1080
Viewing angle 178° weight 38KG Service life 6W hours







Ultra-narrow frame design, perfect visual feast

The 1.8mm splicing narrow border design makes the display between the screens almost seamless. The width of the left/top border of the spliced display is 0.9mm.

The width of the right/bottom border is 0.9mm, and the border interval is only 1.8mm when multi-screen splicing





LCD splicing unit, multi-view angle analysis



Intelligent split screen, any combination of single screen and multiple screens

Diversified image splicing display, which can set the size and position of the display signal window, and easily realize the functions of combined display, stretching, image roaming, etc.




Application environment

It can be used in various environments




Various installation methods

The installation mode can be adjusted according to the different wall structure and the size of the project area. Engineers all over the country to install, so that you can avoid worries


LCD splicing screen parameter table

LCD screen Size 55 inches
Display area 1209.6mm*680.4mm
Equipment size 1020.02mm*574.61mm*125.7mm
Resolving power 1920*1080
Pixel spacing 0.9mm*0.9mm
Brightness 500cd/m2
Contrast ratio 4000:1
Color 16.7M
Gamut 0.72
Viewing angle 178°
Response time 6ms
Physical seam 1.8mm
Image Proportion 16:9
Wave filter 3D comb filter, digital noise reduction
Video format PAL/NTSC
Input port HDMI 1-way HDMI 1.41920* 1080@60HZ Downward compatibility
DVI 1-way DVI-I, 1920* 1080@60HZ Downward compatibility
VGA 1-way VGA (DB-15), 1920* 1080@60HZ Downward compatibility
AV 2-way AV, 1920* 1080@60HZ Downward compatibility
USB 1 channel, supporting video, picture and audio playback
RS232 1-way RS232
Ring out port AV 2-way AV, 1920* 1080@60HZ Downward compatibility
RS232 2-way RS232
Electrical performance Input AC100-240V wide voltage input
Power waste 280W
Standby power 0.5W
Environmental Science Storage temperature -20~ 65°C
Working temperature 0~ 50°C
Weight Net weight 38KG
