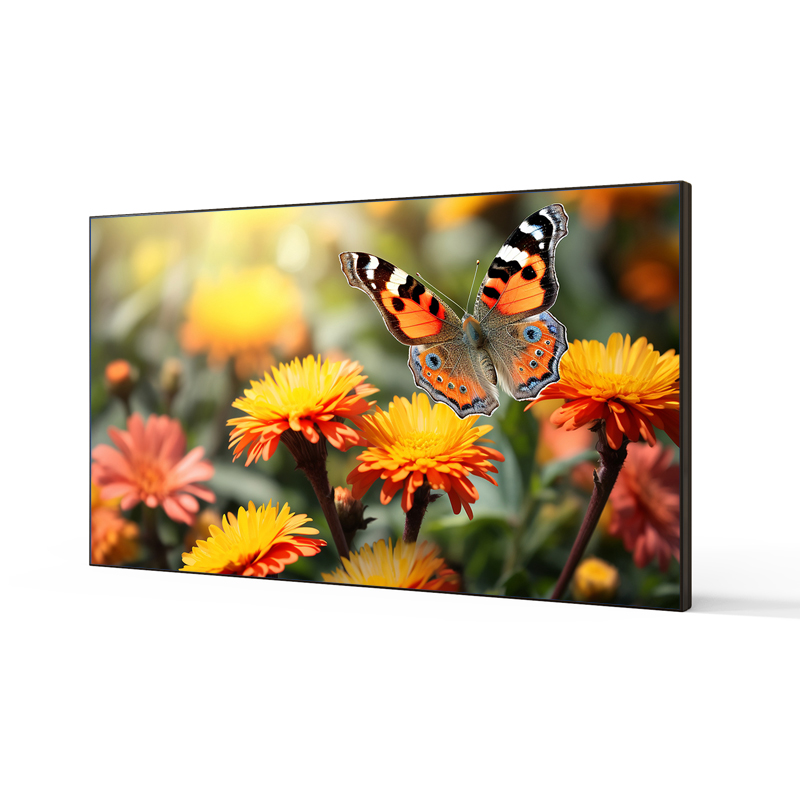

46 inch BOE 3.5mm LCD splicing screen

46 inch BOE 3.5mm LCD splicing screen
46 inch BOE 3.5mm LCD splicing screen
  • 46 inch BOE 3.5mm LCD splicing screen
  • 46 inch BOE 3.5mm LCD splicing screen

46 inch BOE 3.5mm LCD splicing screen Display parameters

Product number
Screen size
Bilateral seam
Brightness 700 cd/m2 Appearance size 1021.98*576.57*125.7mm Power waste 180W/h
Contrast ratio 3500:1 Startup response time
6ms Resolving power 1920*1080
Viewing angle 178° Weight 26KG Service life 6W hours


Ultra narrow frame design, perfect visual feast

The 3.5mm splicing narrow frame design makes the display between the screens almost seamless. The width of the left / top border of the splicing display screen is 2.5mm, the width of the right / bottom border is 1.3mm, and the frame spacing is only 3.5mm when splicing multiple screens


LCD splicing unit, multi view angle analysis


Intelligent split screen, single screen, multi screen arbitrary combination

Diversified image mosaic display, the size and position of the display signal window can be set, and the functions such as combination display, stretching and image roaming can be realized easily3(1).jpg

Application environment

It can be used in various environments



LCD splicing screen parameter table

LCD screen Size 46 inches
Display area 1018.08mm*572.67mm
Equipment size 1021.98mm*576.57mm*125.7mm
Resolving power 1920*1080
Pixel spacing 1.75mm*1.75mm
Brightness 700cd/m2
Contrast ratio 3500:1
Color 16.7M
Gamut 0.72
Viewing angle 178°
Response time 6ms
Physical seam 3.5mm
Image Proportion 16:9
Wave filter 3D comb filter, digital noise reduction
Video format PAL/NTSC
Input port HDMI 1-way HDMI 1.41920* 1080@60HZ Downward compatibility
DVI 1-way DVI-I, 1920* 1080@60HZ Downward compatibility
VGA 1-way VGA (DB-15), 1920* 1080@60HZ Downward compatibility
AV 2-way AV, 1920* 1080@60HZ Downward compatibility
USB 1 channel, supporting video, picture and audio playback
RS232 1-way RS232
Ring out port AV 2-way AV, 1920* 1080@60HZ Downward compatibility
RS232 2-way RS232
Electrical performance Input AC100-240V wide voltage input
Power waste 180W
Standby power 0.5W
Environmental Science Storage temperature -20~ 65°C
Working temperature 0~ 50°C
Weight Net weight 26KG
