Case analysis of 5 LCD splicing screen project of Shantian Hotel in Liling, Zhuzhou City, Hunan Province
This LCD splicing screen manufacturer huabangying cooperative enterprise introduction: Liling Shantian Hotel, a comprehensive large-scale hotel providing accommodation, catering, leisure and entertainment for tourists, strives to provide customers with the best housing experience and has a good reputation in the local area.

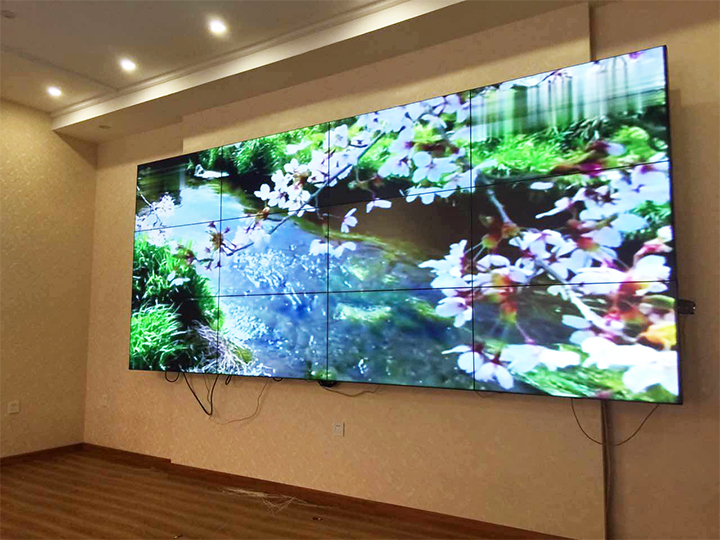

Recently, Liling Shantian hotel has introduced a set of LCD splicing large screen in the hotel, which is used to display the local tourism information, food resorts, housing conditions and promote the special catering and entertainment services of some hotels. It can also show the high-end quality and soft power of the hotel, so that customers can live at ease and comfortable.
The LCD mosaic screen has the industry-leading direct down backlight. The display picture is clear, bright, lifelike, delicate and flickering, which makes the full screen display display a very high-end aesthetic feeling and texture; the 1920 * 1080 ultra-high resolution and 4500:1 clear contrast, high-definition does not lose the truth; at the same time, it also has an ultra wide viewing angle of 178 ° and the display screen can be seen at a glance; not only that, it has an ultra long life of 70000 The LCD splicing screen, which can support 7 * 24 operation without damage, has extremely low maintenance cost and higher cost performance ratio; it is the best choice for display terminal fields such as monitoring and security, conference display, shopping mall exhibition, cinema, large game competition display equipment, wall advertisement rotation, etc.
Splicing unit: HBY-PJ550P
Splicing seam: 3.5mm
Splicing specifications: 3*4/46 inches
Contrast ratio: 4500:1
Response time: less than 6ms
Operating life: more than 70000h
Installation method: wall-mounted, hydraulic front maintenance bracket
Construction unit: LCD splicing screen manufacturer Winbond Ying Technology
Panel type: Samsung industrial grade S-PVA panel

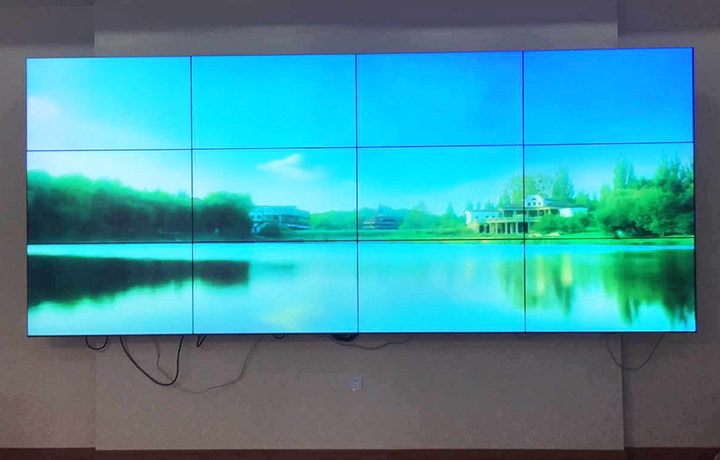

1. The height of the splicing wall is h = 2.42M, and the length is L = 6.13m. According to the requirements of the hotel, the splicing screen is balanced in the middle, and the 3 * 346 inch splicing large screen scheme is formulated according to the comprehensive budget and various factors. (46 inches, H ≈ 57cm, l ≈ 103cm)
2. The splicer is used to process the access to meet the needs of display. Multi screen, single screen and round cast display are used to support multiple signal access.
3. The embedded hydraulic front maintenance bracket is installed to save space and is high-end and fashionable. Moreover, as long as you gently press the surface or frame of the screen, you can pop up any screen at a constant speed and slowly. Then, like pulling a drawer, the LCD splicing screen can be pulled out horizontally for more than 20 cm. If there is a problem with a single screen in the future, it can be directly disassembled and installed without affecting other screens.
4. The power supply system on the installation site operates normally and is close to three-phase balance. The load power of each connection is basically the same, and the grounding is good, less than 4 ohm, which can ensure the circuit safety.
5. The construction site environment is clean and dust-free; the ground of projection unit installation is flat and firm; the splicing wall can bear load.
6. For field wiring lines, the strong current and weak wires are separated by trunking to prevent signal interference; there is no strong light on the screen about 2-3m, so as to avoid affecting the display of splicing screen and causing reflection.
Now the project has been completed and put into use, which greatly improves the accommodation experience of tourists, which has also won a good reputation for Liling Shantian hotel. In this regard, the hotel side responded by calling and was extremely satisfied with the project, and said that if there is any need for other projects in the future, it will choose to cooperate with huabangying Technology Co., Ltd.
It has been recognized and trusted by customers, which shows that huabangying has gradually emerged among many LCD splicing screen manufacturers and become one of the leading brands of terminal display. In the future, huabangying will continue to adhere to the company's faith, forge ahead and achieve better results。
