Case analysis of LCD splicing screen project of Hangzhou Huading Suit Fashion Co., Ltd.
Hangzhou Huading suit Fashion Co., Ltd. is a large modern enterprise specialized in producing and customizing all kinds of high-grade embroidered garments and suits.
In order to show the company's clothing products to the wholesale partners and customers at home and abroad, Huading suit introduced a set of splicing large screen as the display equipment of the company's display wall, broadcast the company's corporate culture, product information, various qualifications publicity, etc.; the high-definition LCD splicing screen also plays an invisible role in enhancing the company's strength and highlighting the company The role of hard power
Splicing unit: HBY-PJ460P
Splicing seam: 3.5mm
Splicing specification: 3*3/46 inch
Contrast ratio: 4500:1
Response time: less than 6ms
Operating life: more than 70000h
Installation method: embedded, hydraulic front maintenance bracket
Construction unit: LCD splicing screen manufacturer Winbond Ying Technology
Panel type: Samsung industrial grade S-PVA panel
The LCD mosaic screen has the industry-leading direct down backlight. The display picture is clear, bright, lifelike, delicate and flickering, which makes the full screen display display a very high-end aesthetic feeling and texture; the 1920 * 1080 ultra-high resolution and 4500:1 clear contrast, high-definition does not lose the truth; at the same time, it also has an ultra wide viewing angle of 178 ° and the display screen can be seen at a glance; not only that, it has an ultra long life of 70000 The LCD splicing screen, which can support 7 * 24 operation without damage, has extremely low maintenance cost and higher cost performance ratio; it is the best choice for display terminal fields such as monitoring and security, conference display, shopping mall exhibition, cinema, large game competition display equipment, wall advertisement rotation, etc.
Installation environment introduction:

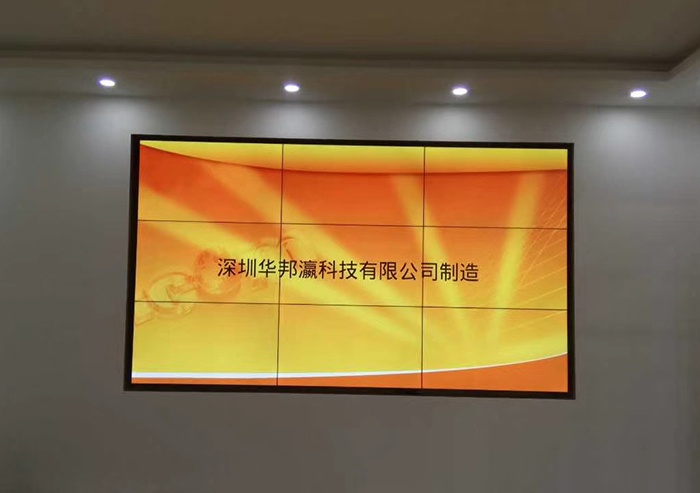

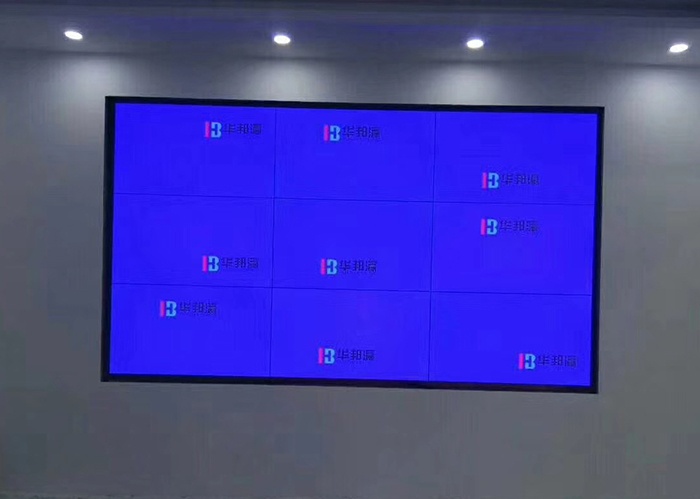

1. The height of the splicing wall is H=2.52m and the length L=4.36m. According to the requirements of Huading, the splicing screen needs to be balanced in the center and upper side, with a space between the left and right sides, to achieve a beautiful effect. Comprehensive budget and various factors have been formulated. *3 46-inch splicing large screen solution. (46 inches H≈57cm, L≈103cm)

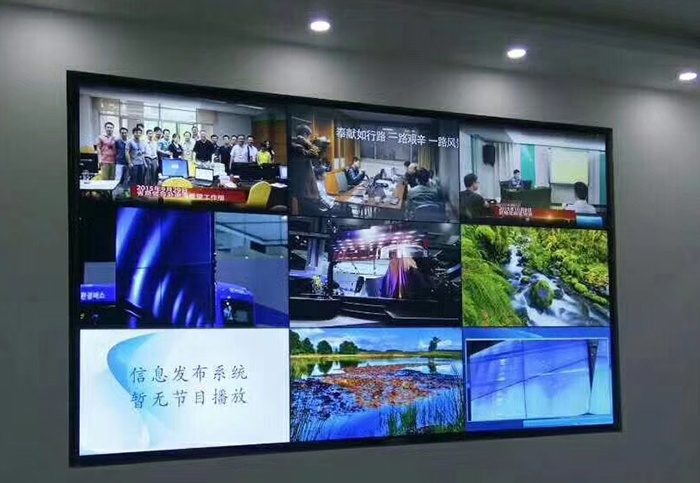

2. The splicer is used to process the access to meet the display needs. Multi-screen, single-screen, carousel display, etc., support multiple signal access.
3. The embedded hydraulic front maintenance bracket is used for installation, which saves space and is high-end fashion; if there is a problem with a single screen in the future, it can be directly disassembled and installed without affecting other screens.
4. The power supply system at the installation site is operating normally, close to three-phase balance, and the load power of each wiring is basically the same.
5. The construction site environment is clean and dust-free; the floor where the projection unit is installed is flat and firm; the splicing wall can be loaded.
6. Use wire troughs to separate strong and weak wires to prevent signal interference; there is no strong light around the screen for 2-3m, so as not to affect the display of the splicing screen and cause reflections.
Finally, with the efforts of the installation personnel, the project was successfully completed and put into use. After passing the process of trial production, verification and acceptance, Huading suit showed great recognition and praise to huabangying.
For many years, huabangying Technology Co., Ltd., a LCD splicing screen manufacturer, has been providing the best quality display terminal equipment scheme, considerate service and reliable products for different customers at home and abroad. It has won the unanimous praise of users. In the future, huabangying will make great efforts to optimize itself and coexist with customers in mutual benefit.
