Case analysis of 55-inch LCD splicing screen project of Shanxi Yangmei Fengxi Group Linyi Branch
The LCD splicing screen manufacturer huabangying cooperative enterprise: Shanxi Fengxi fertilizer Group Linyi Branch Company, subordinate to Shanxi Fengxi Fertilizer Industry Co., Ltd., cooperates with Shanxi Yangmei group, now known as Shanxi Yangmei Fengxi fertilizer Co., Ltd., is a large-scale fertilizer production base integrating urea production and sales. Small granule urea and large granule urea are the main products of the company Product:

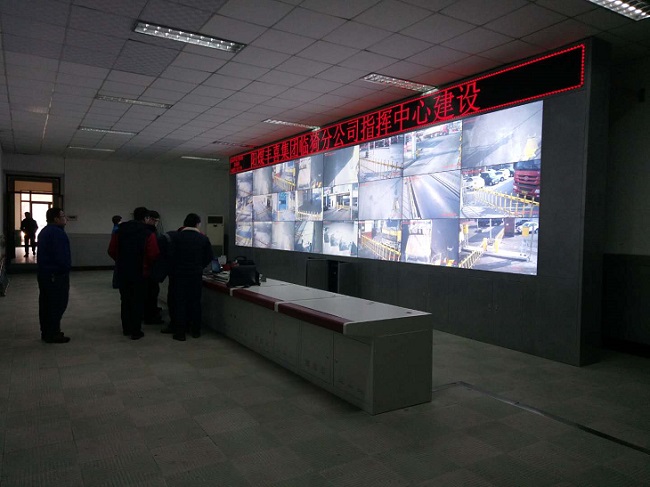

A few days ago, after full market research and investigation, Yangmei Fengxi Linyi Branch introduced a set of 55 inch, 24 pieces of LCD splicing screen to form a monitoring system with huabangying technology, which was used as the display equipment of the company's monitoring command and dispatching center. In order to supervise the daily urea production, respond to the call of national safety production, timely discover the problems existing in the production process Countermeasures and solutions.
Huabangying LCD splicing screen has the current industry-leading direct down backlight, the display picture is saturated and delicate, the color is clear; ultra-high contrast and resolution, high-definition display monitoring screen, no errors and omissions; not only that, it can support 7 * 24 hours non-destructive operation, adapt to a variety of long-term boot environment, protect production safety all day, so that enterprises are more assured and practical ;
Splicing unit: HBY-PJ460P
Splicing seam: 3.5mm
Splicing specifications: 3*8/55 inch
Contrast ratio: 4500:1
Response time: less than 6ms
Operating life: more than 70000h
Installation method: cabinet installation
Construction unit: LCD splicing screen manufacturer Winbond Ying Technology
Panel type: Samsung industrial grade S-PVA panel
Some people think that the splicing screen that runs all day long consumes a lot of energy, but in fact, it is not. The power consumption of the splicing screen is very small and the energy consumption is very low. Compared with the ordinary display equipment, the power consumption of the splicing screen is not worth mentioning. It is in line with the concept of green development at present. It is a fashionable, simple and fashionable hard product.

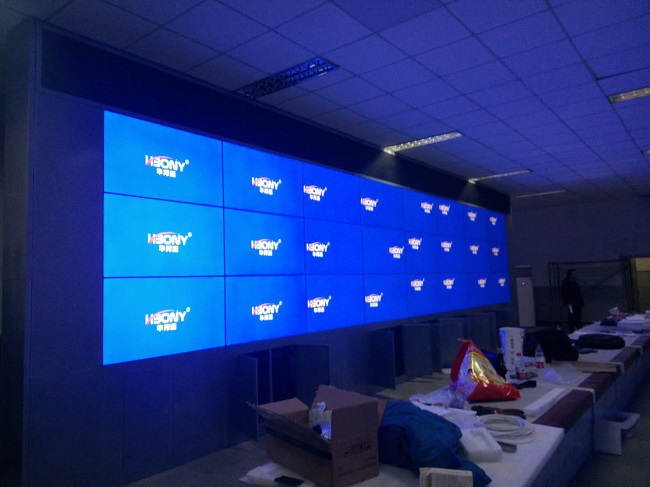

1. The cabinet splicing height H=3.53m, length L=10.780m, the splicing screen needs to be in the middle of the cabinet, and a horizontal LED screen is left above. Based on the budget and various factors, a 3*8 55-inch splicing large screen plan was developed. (55 inches H≈68.4cm, L≈121.4cm)
2. Adopt a hybrid network matrix as the control system to meet the requirements of the monitoring system, multi-screen, single-screen, and superimposed display; support roaming, compiling, decoding and other functions, support multiple signal HDMI, VGA, HDMI and other signal source access.
3. The power supply system at the installation site is operating normally and is close to three-phase balance. The load power of each connection is basically the same, and the grounding resistance is less than 4 ohms, which effectively prevents the backflow of the power-off circuit.
4. The construction site environment is clean and clean and free of dust; on-site wiring lines, separate strong and weak wires with a wire slot to prevent signal interference; there is no strong light near the screen, so as not to affect the display of the splicing screen and cause reflections.

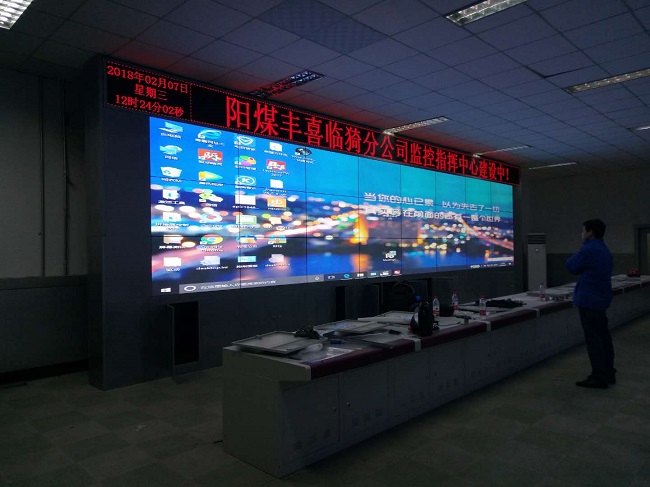

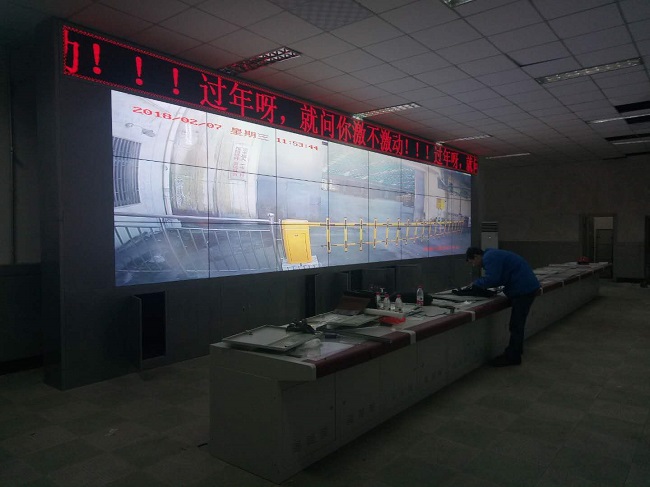

Now, the LCD splicing screen project of Linyi Branch of Shanxi Yangmei Fengxi group has been successfully completed and put into use, which has greatly enhanced the company's grasp of safety production; in the production process of some non-standard operation, timely detection and treatment, to ensure the quality of urea product output, to be a country, society, people responsible for the enterprise.
It has always been the goal of huabangying, a LCD splicing screen manufacturer, to develop the best personalized display scheme for customers and to coexist mutually with customers. The smooth cooperation with Shanxi Yangmei Fengxi group shows that huabangying has made another step forward in the field of terminal display.
